Product Details

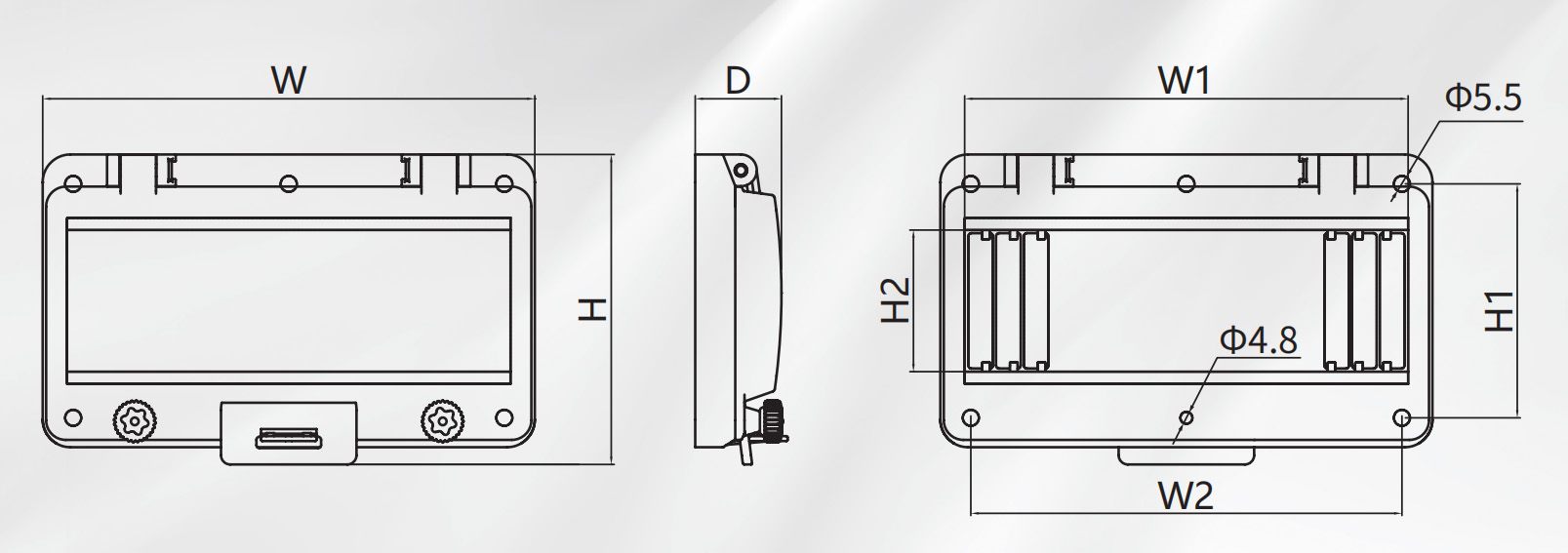

| Product code | dimensions(mm) | W | H | D | W1 | H1 | W2 | H2 |
|---|---|---|---|---|---|---|---|---|
| WH-2P | 57*100*28 | 57 | 100 | 28 | 38 | 76 | 36.2 | 46 |
| WH-3P | 75*100*28 | 75 | 100 | 28 | 56 | 76 | 54.2 | 46 |
| WH-4P | 93*100*28 | 93 | 100 | 28 | 74 | 76 | 72.2 | 46 |
| WH-6P | 124*100*28 | 124 | 100 | 28 | 105 | 76 | 108.2 | 46 |
| WH-8P | 160*100*28 | 160 | 100 | 28 | 141 | 76 | 144.2 | 46 |
| WH-10P | 196*100*28 | 196 | 100 | 28 | 177 | 76 | 180.2 | 46 |
| WH-12P | 232*100*28 | 232 | 100 | 28 | 216.2 | 76 | 213 | 46 |
| WH-13P | 250*100*28 | 250 | 100 | 28 | 231 | 76 | 234.2 | 46 |
| WH-16P | 304*100*28 | 304 | 100 | 28 | 282 | 76 | 288.2 | 46 |
| WH-18P | 340*100*28 | 340 | 100 | 28 | 318 | 76 | 324.2 | 46 |
| WH-24P | 448*100*28 | 448 | 100 | 28 | 437.5 | 76 | 426 | 46 |
| WH-86 | 107*124*32 | 107 | 124 | 32 | 88 | 101.8 | 86.2 | 86.5 |
| WH-100 | 120*142*32 | 120 | 142 | 32 | 101.5 | 116 | 101 | 101.5 |
| WH-144 | 149*175*32.5 | 149 | 175 | 32.5 | 146 | 124 | 154 | 106 |

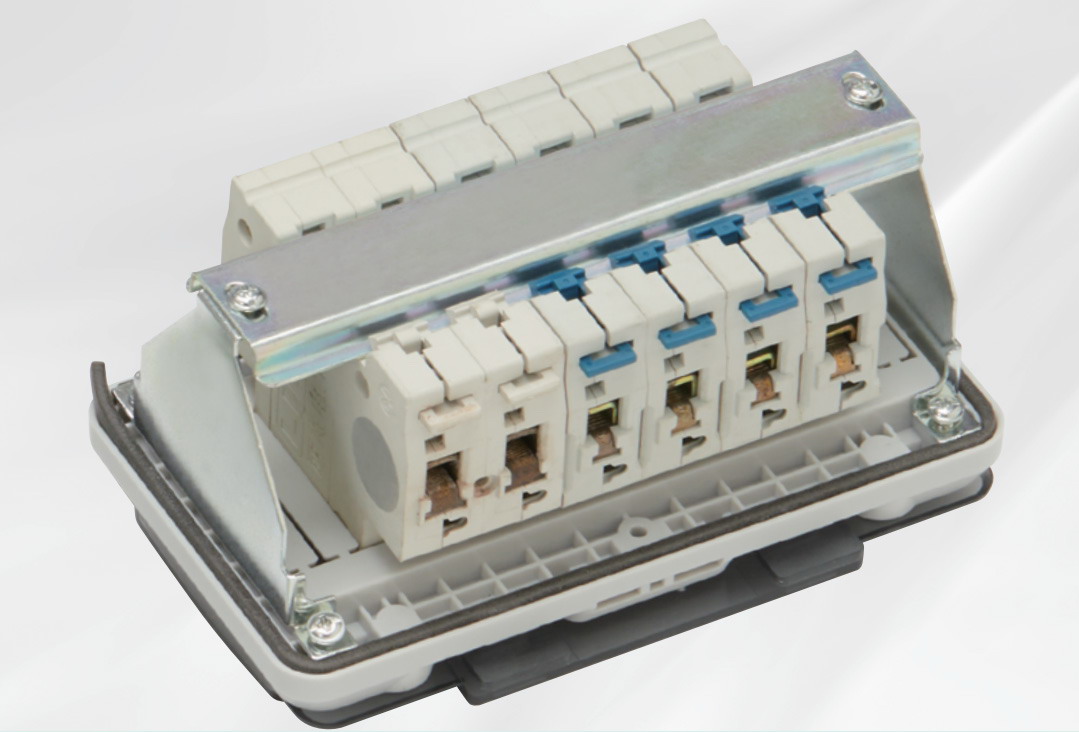

Rail to fix MCB on the plastic window hood
Model:CBB-001
