Product Details
Mounting plate: galvanised steel plate 1.5mm(separate supply)
flame retardant UL94V-0 high heat resistant ABS or PC material(on request)

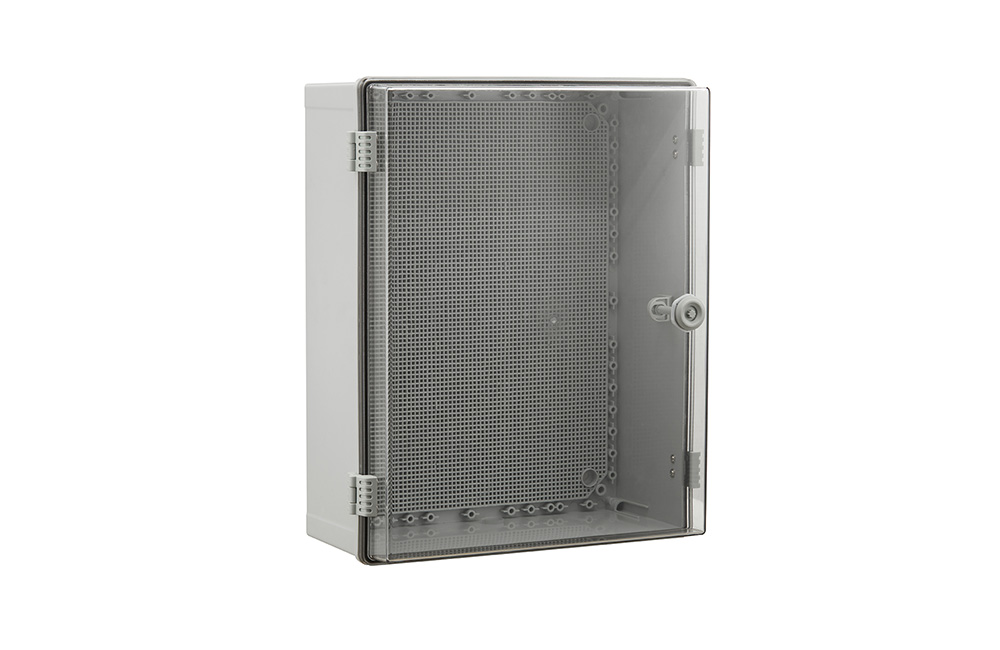

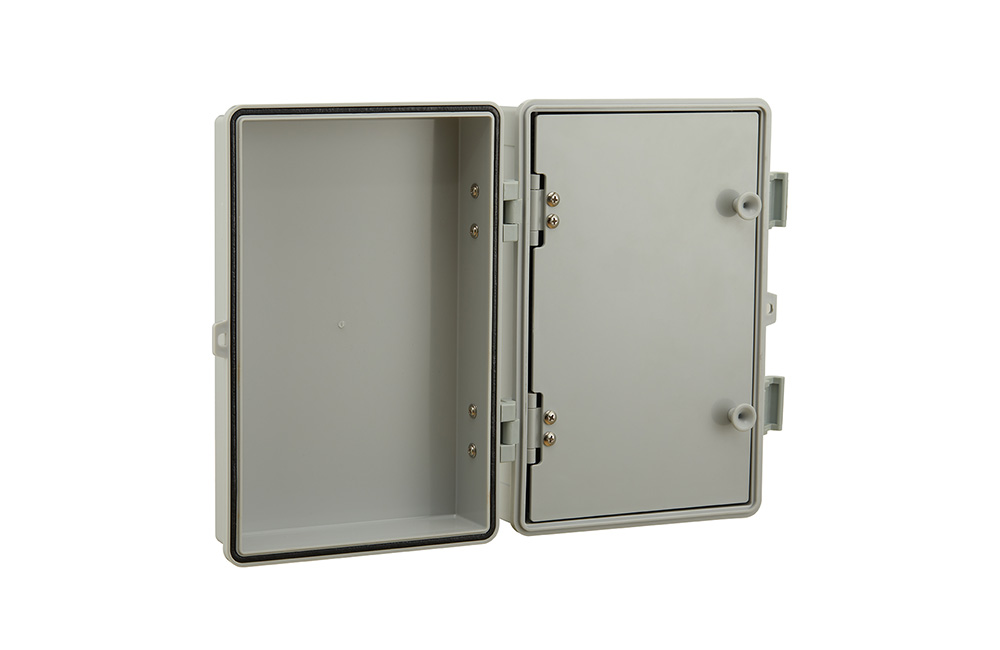

Electrical plastic switch box with locks and clips
| dimensions(mm) | product code(grey cover) | Product code（Transparent cover） | internal door | Plastic mounting plate | Steel mounting plate |
|---|---|---|---|---|---|
| 300*200*160 | K-3020 | K-3020W | KID-3020 | PP-32K | GP-32K |
| 300*200*170 | K-3020 | K-3020W | |||
| 400*300*160 | K-4030 | K-4030W | KID-4030 | PP-43K | GP-43K |
| 400*300*170 | K-4030-1 | K-4030-1W | |||
| 400*300*180 | K-4030-2 | K-4030-2W | |||
| 500*400*200 | K-5040 | K-5040W | KID-5040 | PP-54K | GP-54K |
| 600*500*220 | K-6050 | K-6050W | KID-6050 | PP-65K | GP-65K |
| 800*600*250 | K-8060 | K-8060W | KID-8060 | PP-86K | GP-86K |
