Product Specifications
| Thread | Product code | thread outer diameter(mm) | thread length(mm) |
|---|---|---|---|
| PG7 | PG7-PL | 12.5 | 9.5 |
| PG9 | PG9-PL | 15.2 | 9.5 |
| PG11 | PG11-PL | 18.6 | 10 |
| PG13.5 | PG13.5-PL | 20.4 | 11 |
| PG16 | PG16-PL | 22.5 | 11 |
| PG21 | PG19-PL | 28.3 | 11 |
| PG29 | PG21-PPL | 37 | 12 |
| PG36 | PG25-PL | 47 | 12 |
| PG42 | PG42-PL | 54 | 12 |
| PG48 | PG48-PL | 59.3 | 12 |
| M12 X 1.5 | M12-PL | 12 | 9.5 |
| M16 X 1.5 | M16-PL | 16 | 10 |
| M20 X 1.5 | M20-PL | 20 | 11 |
| M22 X 1.5 | M22-PL | 22 | 11 |
| M25 X 1.5 | M25-PL | 25 | 11 |

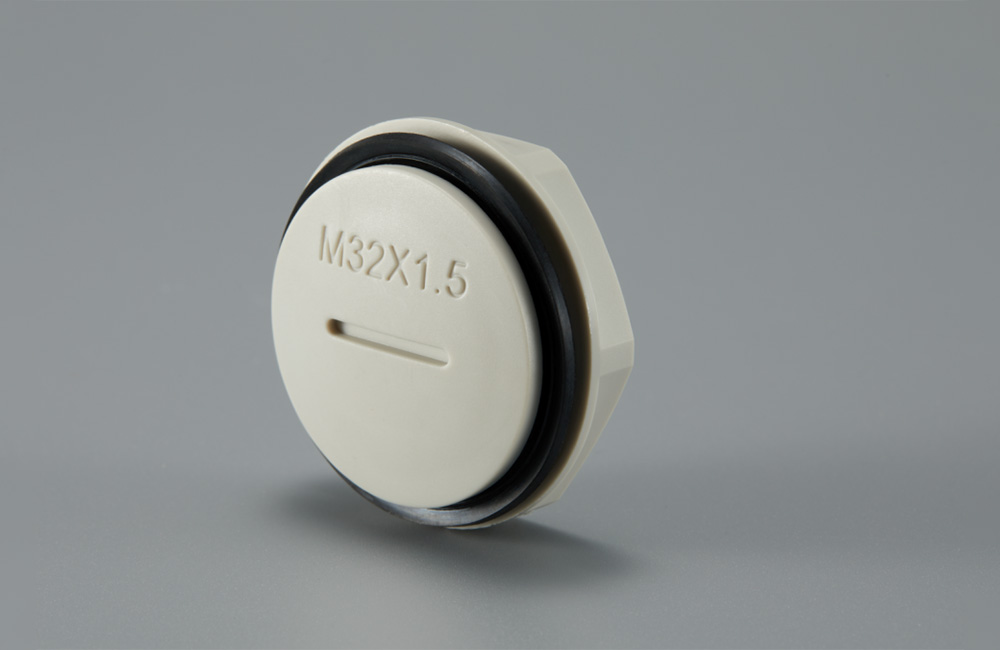

| M32 X 1.5 | M32-PL | 32 | 11 |
| M40 X 1.5 | M40-PL | 40 | 12 |
| M50 X 1.5 | M50-PL | 50 | 12 |
| M63 X 1.5 | M63-PL | 63 | 12 |
